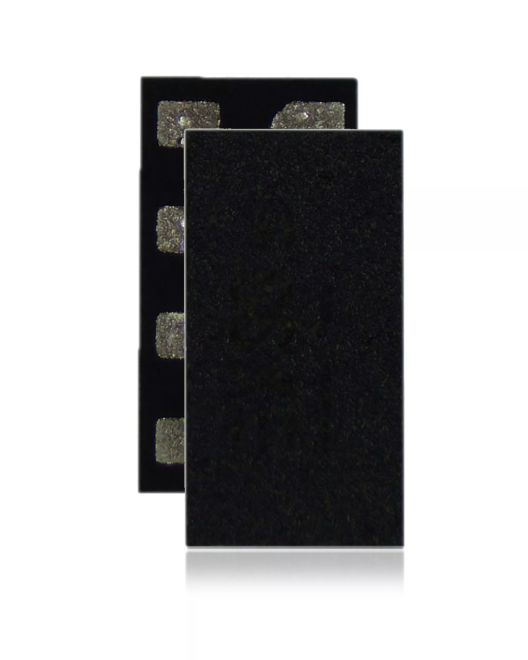

MacBook Retina 12" (A1534 / Early 2015 / Early 2016 / Mid 2017) (820-00045 / 820-00244: QFN-8 Pin) 74LVC1G99 U4465
- The 74LVC1G99 provides a low voltage, ultra-configurable, multiple function gate with 3-state output.
- The device can be configured as one of several logic functions including, AND, OR, NAND, NOR, XOR, XNOR, inverter, buffer and MUX.
- No external components are required to configure the device as all inputs can be connected directly to VCC or GND.
- The 3-state output is controlled by the output enable input (OE).
- A HIGH level at OE causes the output (Y) to assume a high-impedance OFF-state.
- When OE is LOW, the output state is determined by the signals applied to the Schmitt trigger inputs (A, B, C and D)
Compatible with :
- Retina 12(A1534, Early 2015 / Early 2016 / Mid 2017)
