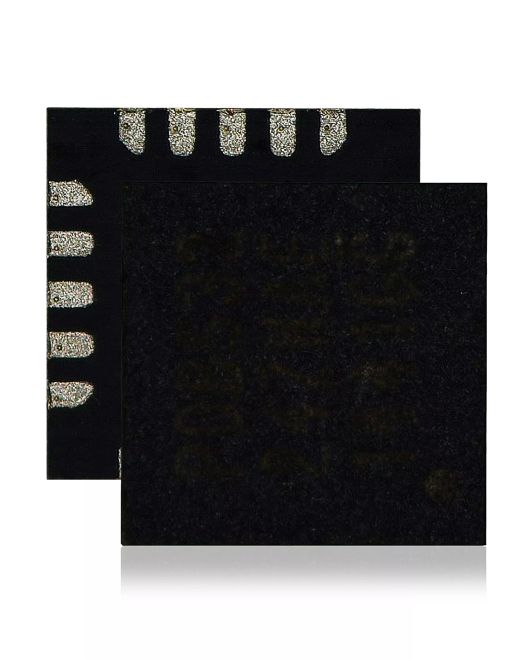

MacBook Retina 12" (A1534 / Early 2015 / Early 2016 / Mid 2017) (PI3DBS3224 :820-00045 / 820-00244 / U4400: QFN-20 Pin) 3.3V High Speed 2:4 Differential Mux / Demux
- The PI3DBS3224 is a 2:4 bidirectional multiplexer for highspeed differential and single ended signal applications.
- The PI3DBS3224 can be used in a 1:4 or dual 1:2 multiplexer/demultiplexer configuration.
- The PI3DBS3224 offers a high BW of 1.2 GHz with channel RON of 13 Ω (Typ).
- The PI3DBS3224 can also be used to fan out a differential or single ended signal pair to two ports simultaneously (fan-out configuration).
- The BW performance is lower in this configuration. The PI3DBS3224 operates with a 3 to 3.6V power supply.
- It features ESD protection of up to ±8-kV contact discharge and 2-kV Human Body Model on its I/O pins.
- Printed Number: PI3DBS3224
Compatible with :
- Retina 12(A1534, Early 2015 / Early 2016 / Mid 2017)
